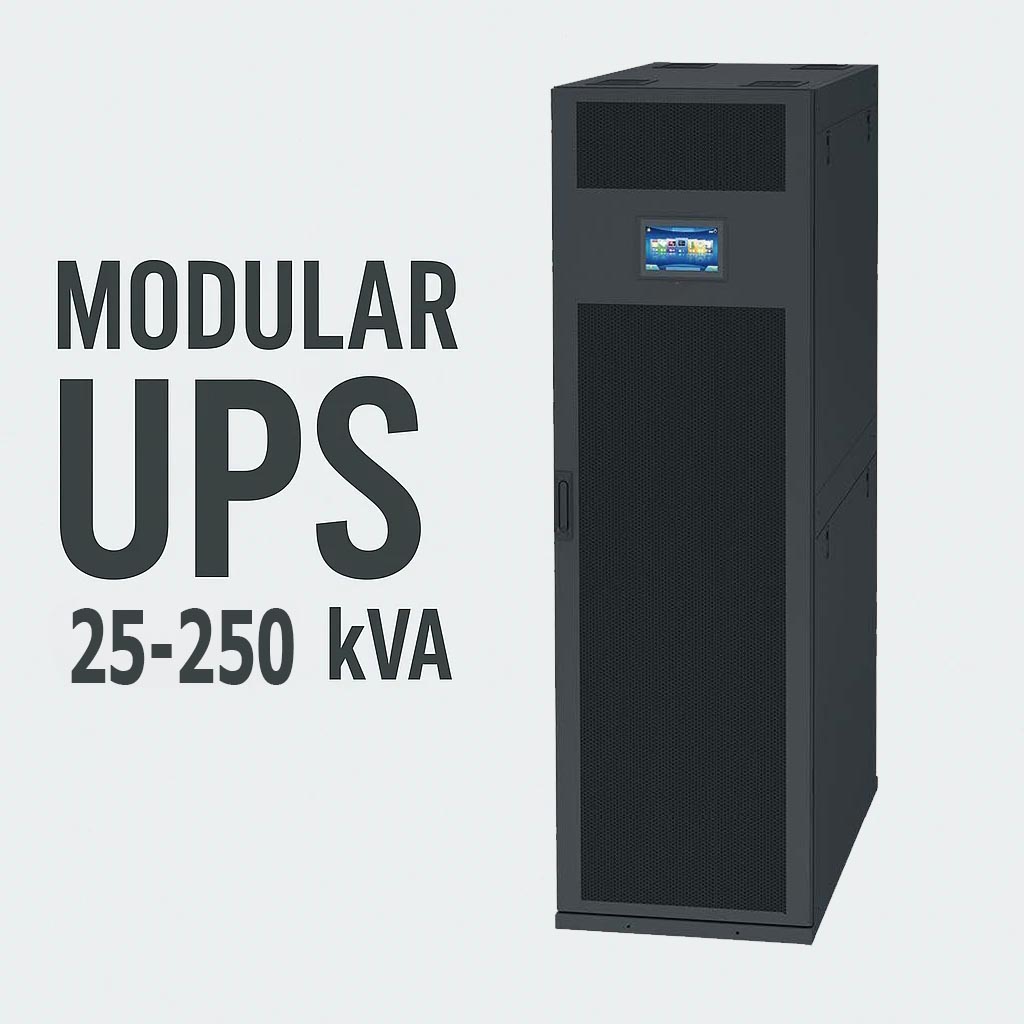

وحدة UPS قابلة للتطوير من سلسلة RM FM بقدرة 25-250 كيلو فولت أمبير

APPLICATION

This product has a wide range of applications, providing safe, stable, reliable, and environmentally-friendly power protection for critical loads in various industries, including telecommunications, finance, education, transportation, radio and television, medical care, and manufacturing.

Product Features

Digital Control

• All components of this series of UPS are digitally controlled, resulting in outstanding performance across all indicators.

High Power Density Modular Design

• Each single module has a capacity of 25kVA, and all modules are 2U in height. UPS modules can be inserted or removed while the system is online.

19-inch Standard Cabinet

• It features a 19-inch standard cabinet, which is aesthetically pleasing and perfectly matches the application environment of the computer room.

N+X Parallel Redundancy

• When the number of redundant modules is two or more, the system availability reaches 99.999%, and the MTBF (Mean Time Between Failures) exceeds 250,000 hours. It supports parallel operation of up to 4 cabinets, and the battery pack can be shared during parallel operation.

Intelligent Battery Management

• Users can set the charging current. The charging modes can automatically and smoothly switch among constant – current, constant – voltage, and floating – charge modes. The number of batteries can be selected from 30 to 50.

LCD Color Screen Display

• The cabinet is equipped with a large LCD display with touch-screen functionality. Both Chinese and English languages are available for selection.

Safe and Convenient Maintenance

• In case of an emergency, the system can be switched to the maintenance bypass for power supply, allowing maintenance personnel to perform online maintenance safely. Pressing the EPO button in an emergency can shut down the system immediately. It also has a remote emergency shutdown (REPO) function.

Intelligent Management

• The centralized monitoring module has a hot-swap function and an RS485 communication interface. Optional accessories such as SNMP cards, relays, and dry contact cards can be installed.
