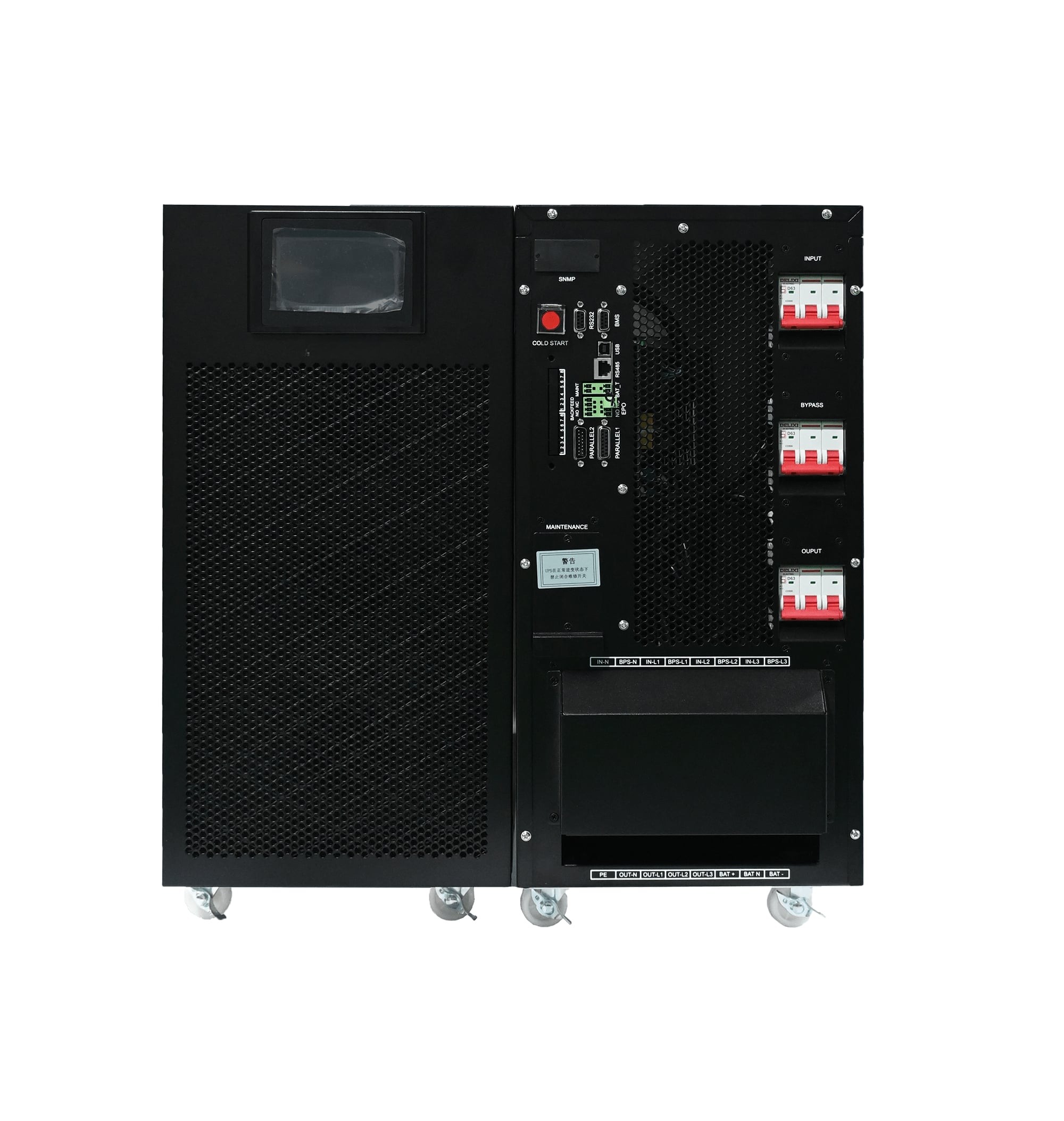

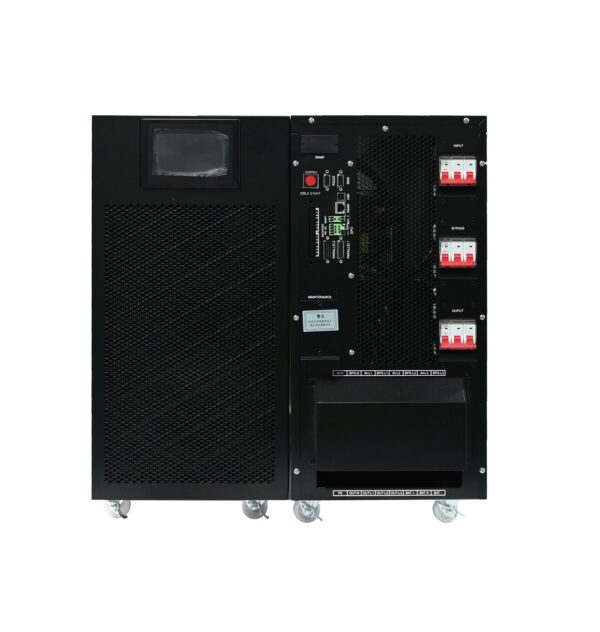

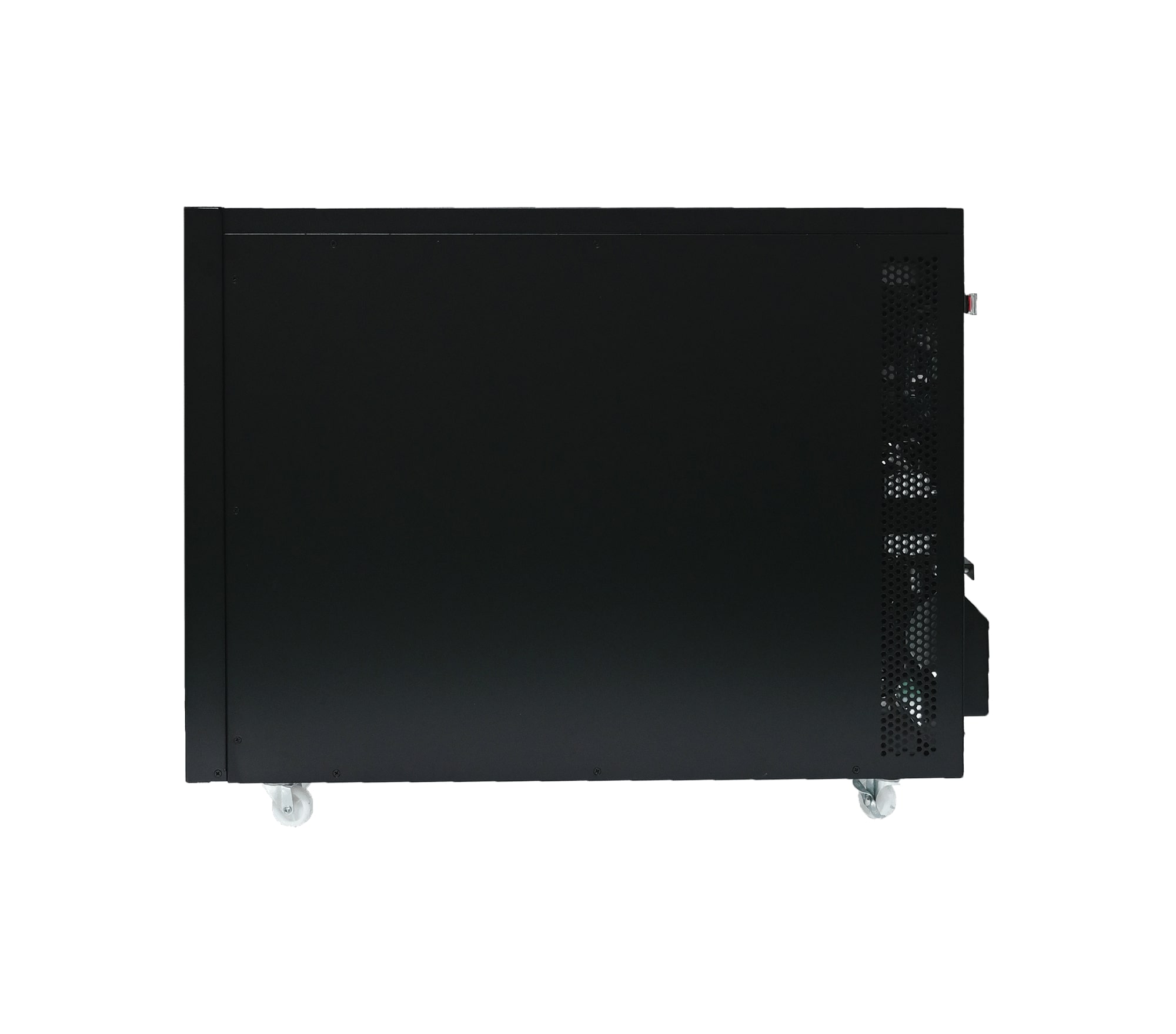

Double conversion Tower UPS Rhimo RM33-10-80K-H

The high-frequency Tower UPS RM33-H series 10 – 80kVA fully digitally controlled online double-conversion three-phase input and three-phase output UPS offers several advantages, including high overall efficiency, high input power factor, low input current harmonics, and excellent output quality. It can eliminate various power grid issues and provide customers with stable and reliable power protection.

POWER RANGE

10-80kva

POWER PHASE

3/3 phase



Category:

APPLICATION

This product has a wide range of applications, offering safe,stable, reliable, and environmental  friendly power support
for critical loads in various industries such as telecommunications, finance, education, transportation, radio and television, medical care, and manufacturing.

Features

high reliability

  • Ultra – wide input voltage range, adapting to harsh power grid environments.
  • Wide input frequency range, allowing the connection of fuel-powered generators.
  • Supports direct startup from the battery in the absence of mains power.
  • Equipped with an EPO (Emergency Power Off) interface.

high-efficiency and green

  • The overall machine efficiency is greater than or equal to 95.5%.
  • The input power factor is as high as 0.99, and the input harmonic current is less than 3%.

High practicality

  • It has an extremely strong load-carrying capacity, strong load adaptability, and is compatible with generator operation.
  • It supports the parallel connection of 4 units and the sharing of battery packs.
  • It supports no-load aging tests.

Good usability

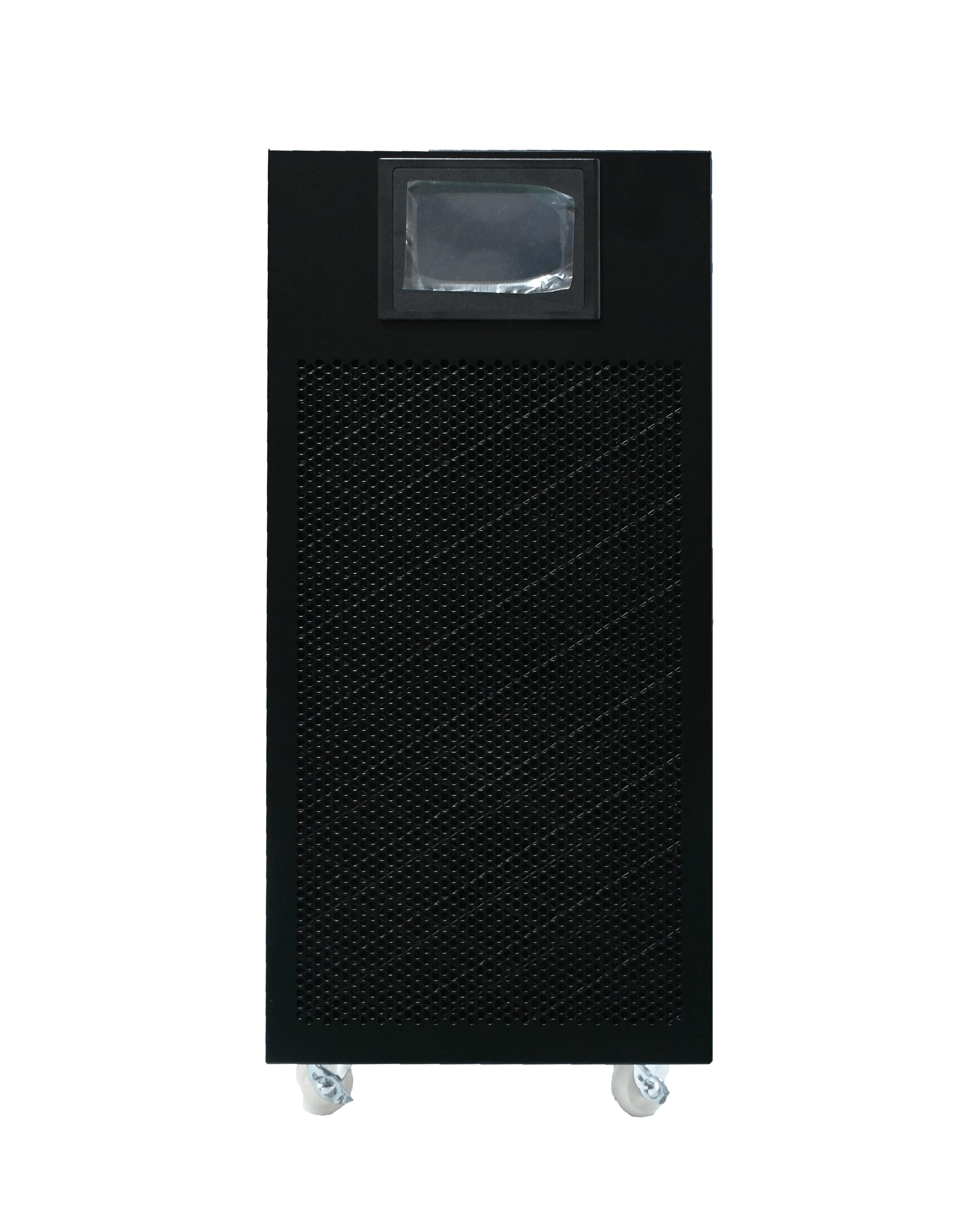

  • It is equipped with a 4.3-inch color touch screen, making it easy to operate.
  • It has intelligent management functions and supports RS485, SNMP, dry contacts, and CAN interfaces.
model : RM33-H 10K-H 20K-H 30K-H 40K-H 60K-H 40K-UNR
capacity 10KVA 20KVA 30KVA 40KVA 60KVA 80KVA
Input Input Wiring Three-phase Five-wire
Rated Input Voltage 380/400/415Vac
Input Voltage Range 138~485Vac
Input Frequency Range 40HZ-70Hz
Input Power Factor ≥0.99
Input Current Harmonic (THDi) <3% (100% linear load)
Bypass Voltage Range For 220Vac: The upper limit is 25% (optional +10%, +15%, +20%);For 230Vac: The upper limit is 20% (optional +10%, +15%);For 240Vac: The upper limit is 15% (optional +10%);The lower limit is -45% (optional -10%, -20%, 30%).
Generator Connection support
output wiring Three-phase five-wire system
output Rated output voltage 380/400/415Vac
Output power factor 0.9
voltage regulation ±1%
Frequency Mains mode: ±1%/ +2%/ +4%/ +5%/ +10% adjustable; Battery mode: (50/60 ± 0.1%)Hz
Peak current ratio 3:1
Output voltage harmonic (THDV) <2% (100% linear load); <4% (100% non-linear load)
Overall efficiency 95.5%
Overload capacity At 110% load, switch to bypass after 60 minutes; at 125% load, switch to bypass after 10 minutes; at 150% load, switch to bypass after 1 minute
battery Battery Voltage ±180V/192V/±204V/±216V/±228V/±240V/±252V/+264V/+276V/+288V/+300Vdc (30-50 sections optional)
Charge Current Maximum 10A Maximum 15A Maximum 20A
Transfer Time Switching from mains mode to bypass mode: 0ms (tracking); Switching from mains mode to battery mode: 0ms
Environ ment Operating temperature 0°C to 40°C
Storage temperature -25°C to 55°C
Humidity range 0 to 95% (non-condensing)
Operating altitude Less than 1500 meters
Noise (at a distance of 1 meter) Less than 55 decibels Less than 58 decibels Less than 60 decibels
function Alarm function Multiple alarm functions for overload, mains abnormalities, UPS faults, battery under -voltage, etc.
Protection function Alarms for battery under – voltage, output over- and under – voltage, short – circuit, overload, over – temperature, fan failure, lightning protection
Communication interface CAN, RS485, FE, LBS, parallel operation card, SNMP adapter (optional), relay card (optional)

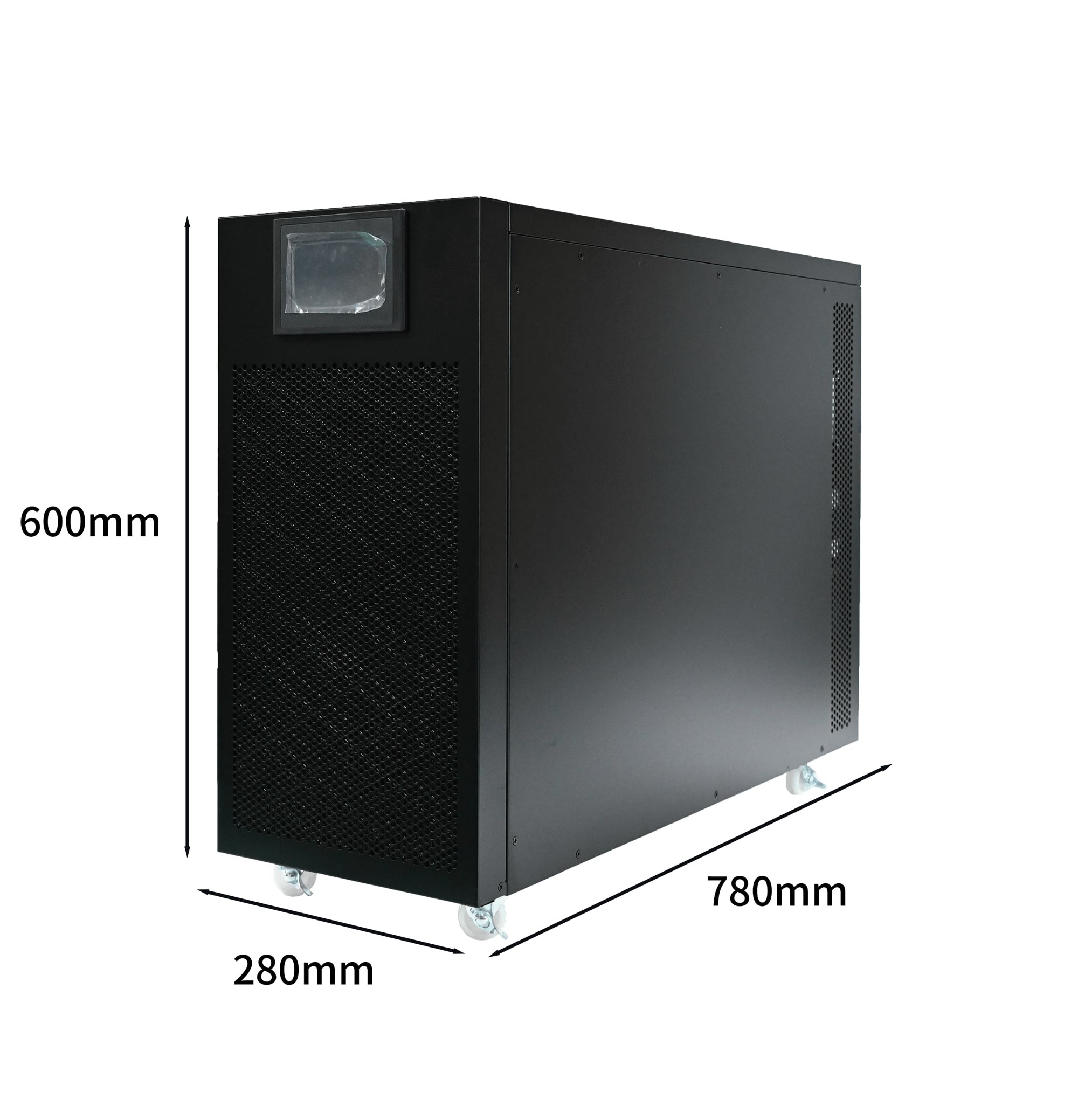

other W × D × H (mm) 710x250x535 780x280x600 880 × 280 × 880 885x440x1200
Net Weight (kg) 30 36.4 39.4 14 68.2 150
Execution standards YD/T 1095-2018
