The high-frequency modular RM33-FM series 20-200kVA three-phase input and three-phase output UPS power supply adopts modular design and N+X parallel redundancy technology. The product capacity covers various power segments ranging from 20kVA to 200kVA, which is convenient for users to configure flexibly and make investments gradually. This series of UPS can almost completely solve all power supply problems, such as power outages, high mains voltage, low mains voltage, momentary voltage sags, amplitude-damping oscillations, high-voltage pulses, voltage fluctuations, surge voltages, harmonic distortions, clutter interferences, frequency fluctuations and other power supply issues.

Application:

This product has a wide range of applications and provides safe, stable, reliable, and environmentally friendly power support for critical loads in various industries, including telecommunications, finance, education, transportation, radio and television, medical care, manufacturing, and other fields.



Category:

DETAILED SPECIFICATIONS OF modular UPS RM33-FM SERIES

Model RM33-FM 20-60 20-100 20-120 20-200
capacity capacity (kVA) 20-60 20-100 20-120 20-200

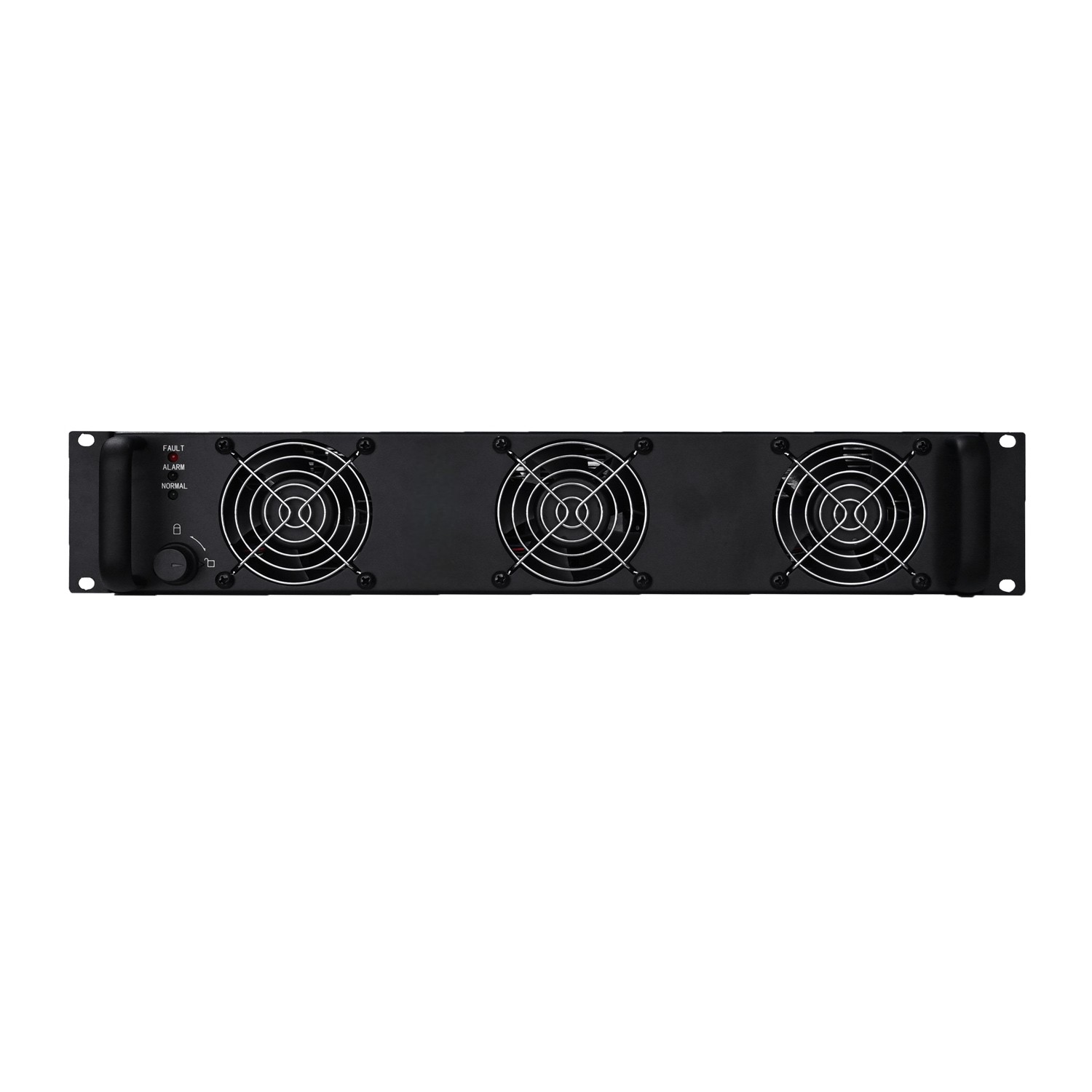

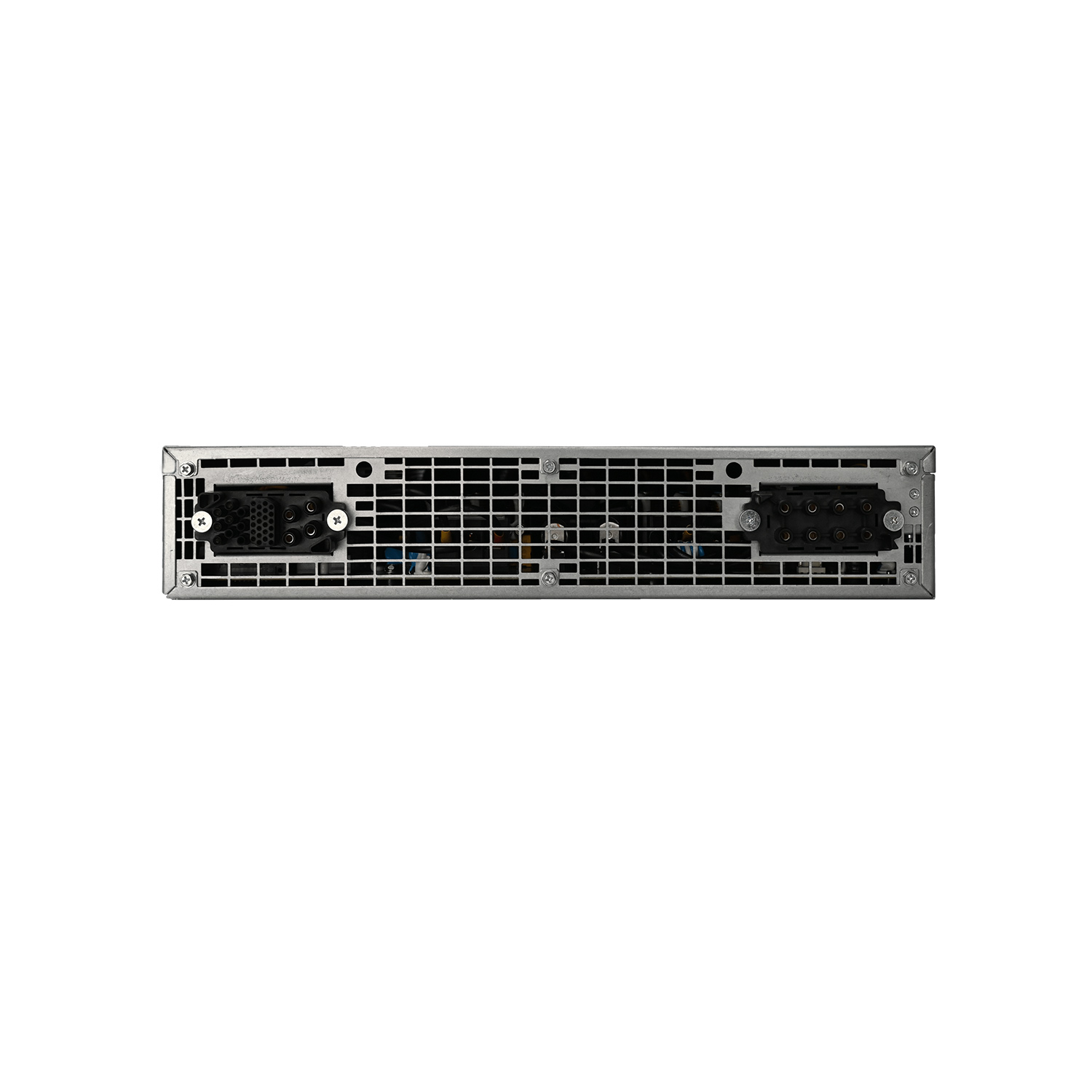

Power module (kVA) 20
input input wiring Three phase four wire+grounding
Rated voltage (Vac) 380/400V/415
Voltage range (Vac) 208~478
Frequency range (Hz) 40~70
Power actor ≥0.99
Bypass range Upper limit for 380: 29% (optional +10%, +15%, +20%);Upper limit for 400: 20% (optional +10%, +15%);Upper limit for 415: 15% (optional +10%);Lower limit: -40% (optional -20%, -30%)
Input current harmonics ≤ 3% (100% non-linear load)
output output wiring Three phase four wire+grounding
Rated voltage (Vac) 380/400V/415
Power factor one
Voltage accuracy ±1%
OUTPUT FREQUENCY Commercial power mode Synchronous with the input; when the mains frequency exceeds the maximum of ±10% (can be set to ±1%, ±2%, ±4%, ±5%), the output frequency is 50 × (±0.2%) Hz.
Battery Mode (50/60±0.2%)Hz
Peak load ratio 3:1
Transfer Time Switching from mains mode to bypass mode: 0ms (tracking); Switching from mains mode to battery mode: 0ms
Overload capacity Load ≤ 110%, 60min; ≤ 125%, maintain for 10min, ≤ 150% maintain for 1min, > 150% immediately switch to bypass
Output voltage harmonics ≤ 2% (100% linear load); ≤ 5% (100% non-linear load)
efficiency 96%
communication interface RS232, RS485, 2 Intelligent Slot (smart card slot), dry contacts
battery battery voltage Optional voltage: ± 180V/± 192V/± 204V/± 216V/± 228V/± 240/± 252/± 264/± 276/± 288/± 300Vdc (30 to 50 sections optional)
Charging current (A) Cabinet Maximum 30 Maximum 50 Maximum 60 Maximum 100
module Maximum 10
work environment operation temperature 0°C~40°C
relative humidity 0~95% non condensing
Storage temperature -25°C~55°C
altitude <1500 meters
physical property Size: D×W×H (mm) Cabinet 850x600x1350 850x600x1350 850x600x1550 850x600x2000

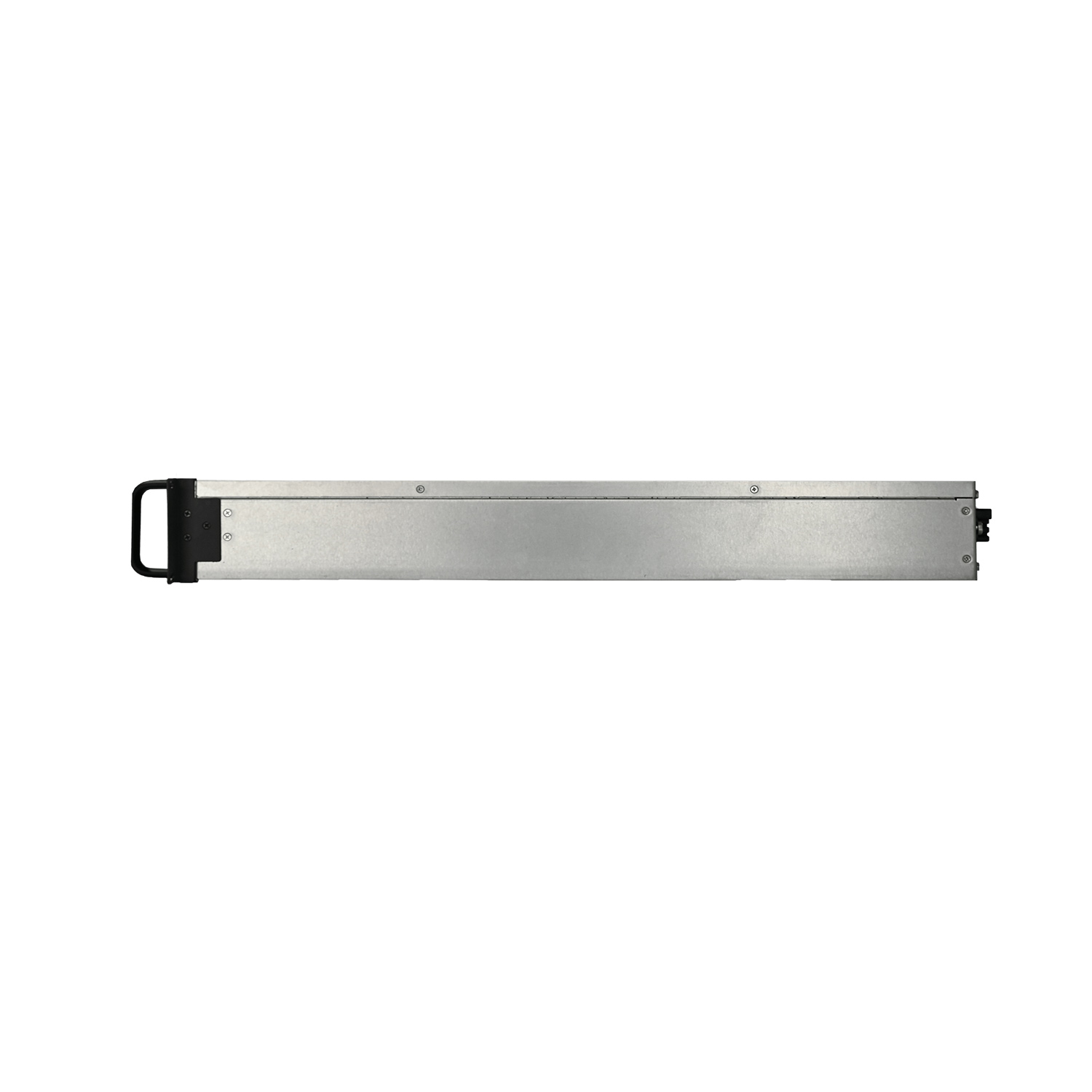

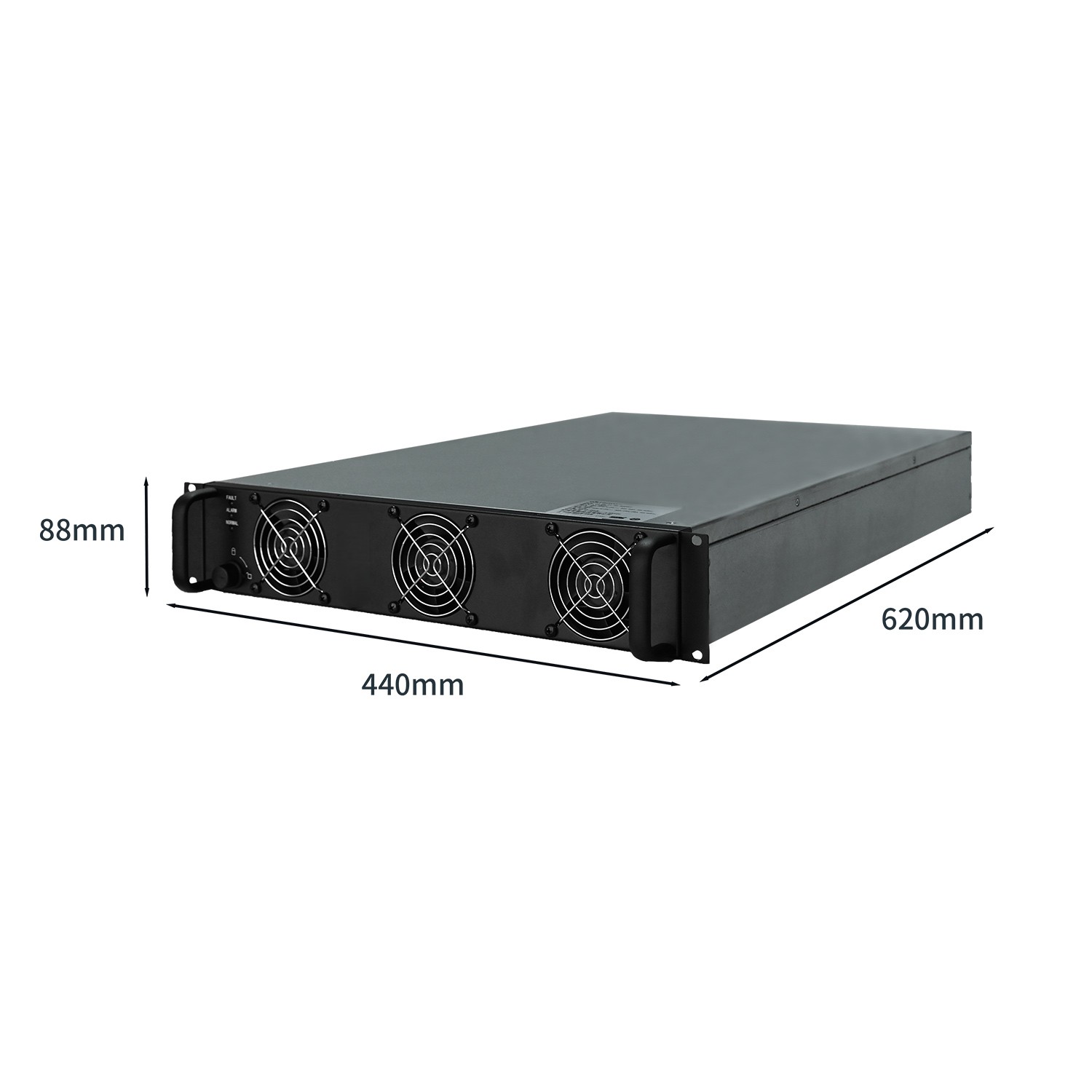

module 620x440x86
Net weight (kg) Cabinet 158 158(186) 167 245
module 21.6
