Online uninterruptible power supply UPS Tower UPS 200-600KVA

Online uninterruptible power supply UPS Tower UPS Rhimo RM33-H-200-600KVA

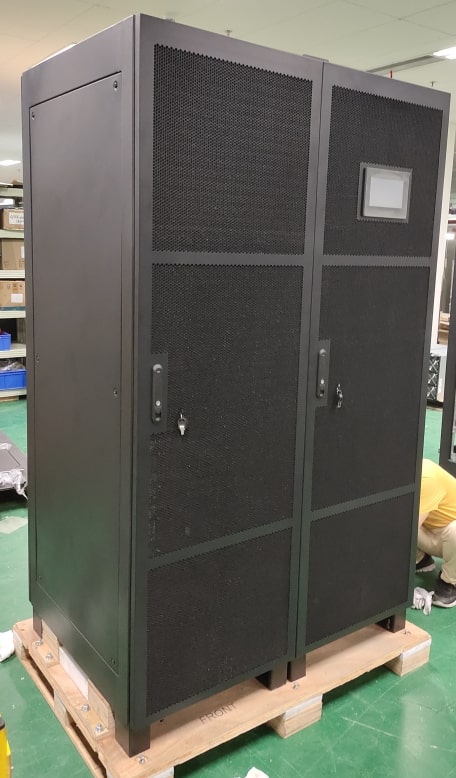

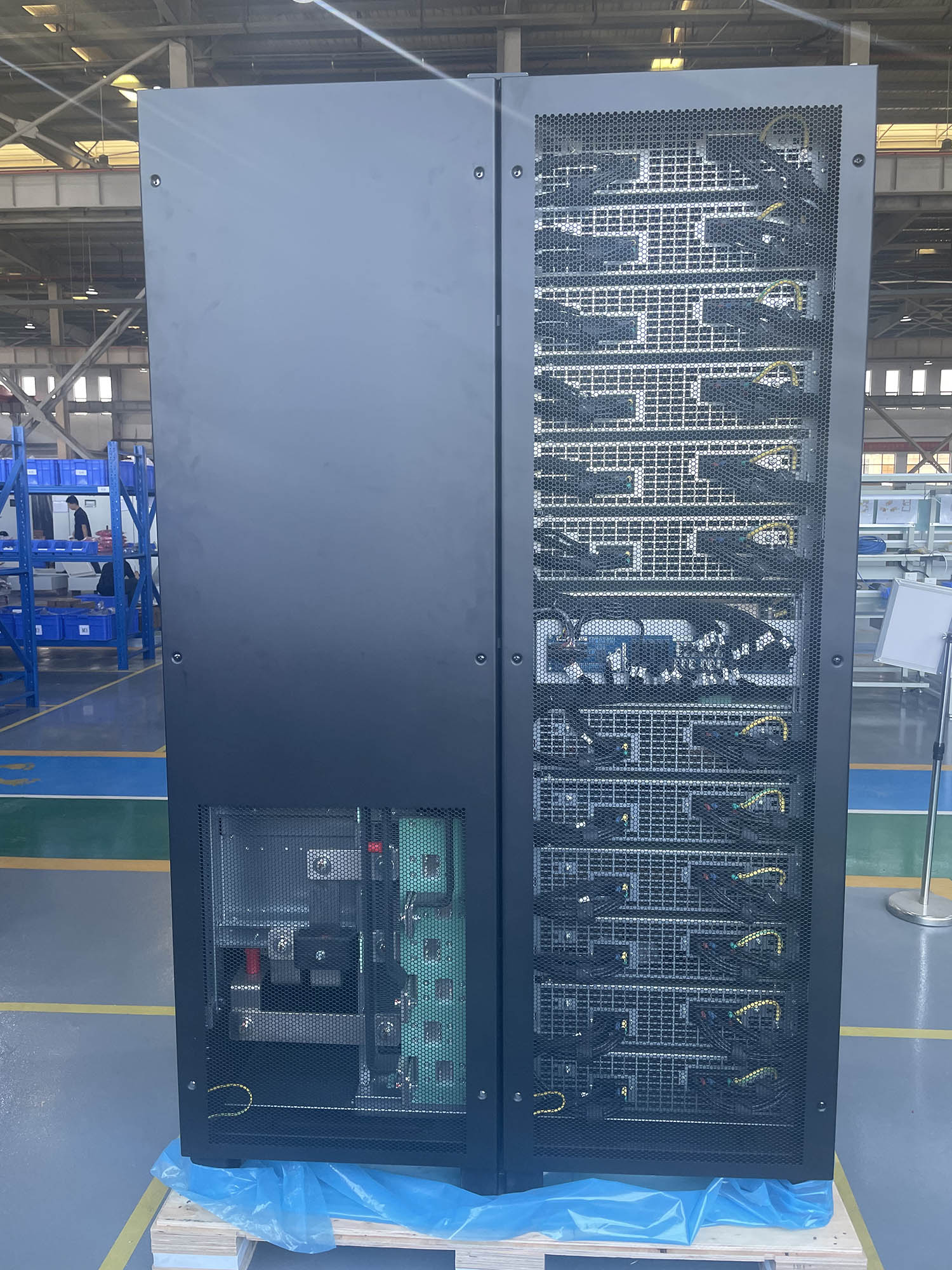

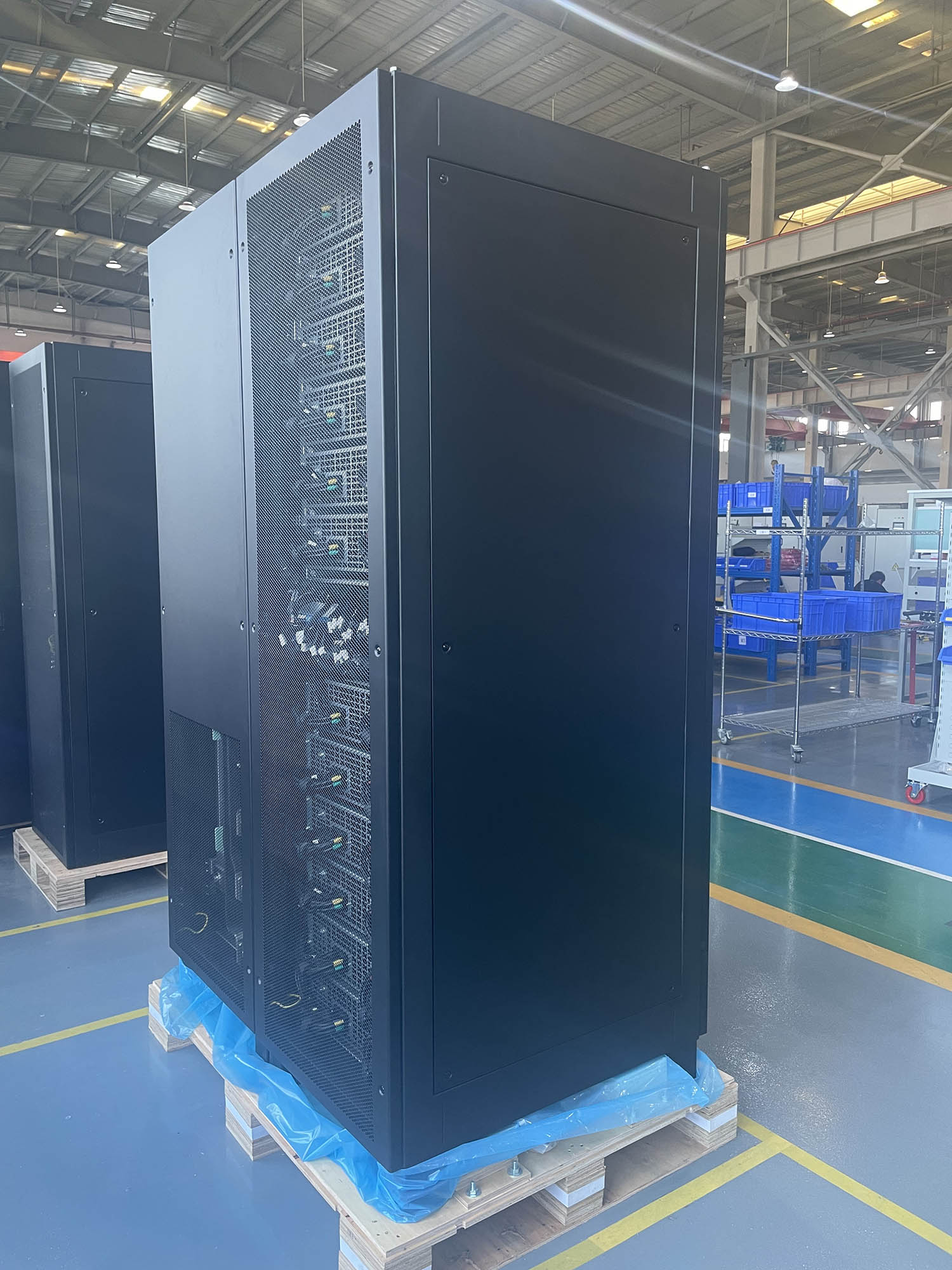

The high-frequency Tower UPS RM33-H series, with a capacity of 200-600kVA, is a new generation of online double-conversion three-phase input and three-phase output UPS. It adopts a quasi-modular structure design, full digital control, and three-level technology, and has the advantages of high efficiency, high power density, and excellent output quality. It can eliminate various power grid problems and provide customers with stable and reliable power protection.

POWER RANGE

200-600kva

POWER PHASE

3/3 phase

Category: Online UPS

Description
Specifications

APPLICATION

This product has a wide range of applications and provides safe, stable, reliable, and environmental friendly power support for critical loads in various industries such as telecommunications, finance, education, transportation, radio and television, medical care, and manufacturing.

Features

High Reliability

With an ultra-wide input voltage range of 138-485Vac and an ultra-wide input frequency range, it can adapt to harsh power grid environments.
The LBS synchronization function enables the synchronization of two sets of UPS, enhancing the reliability of the system.

High Efficiency and Energy Saving

Adopting a three-level topology structure, the overall efficiency of the unit is as high as 95.5%.
The input power factor is as high as 0.99, and the input harmonic current is less than 3%.

Strong Usability

It has an extremely strong load-bearing capacity, capable of handling 100% unbalanced loads. It has excellent load adaptability and is compatible with generator operation.
It supports the parallel connection of 6 units and sharing of the battery pack. The number of battery cells can be selected from 30 to 50.
It supports no-load aging tests.

Good Usability

Equipped with a 7-inch color touch screen that provides graphical display, making it easy to operate.
It has intelligent management functions and supports RS485, SNMP, dry contact, and CAN interfaces.

Model：RM33-h	200K-H	300K-H	400K-H	500K-H	600K-H
capacity	100KVA	300KVA	400KVA	500KVA	600KVA
Input	Input Wiring	Three-phase Five-wire
	Rated Input Voltage	380/400/415Vac
	Input Voltage Range	138-485Vac
	Input Frequency Range	40HZ-70Hz
	Input Power Factor	>0.99
	Input Current Harmonic (THDi)	<3% (100% linear load)
	Bypass Voltage Range	For 220Vac: The upper limit is 25% (optional +10%, +15%, +20%);For 230Vac: The upper limit is 20% (optional +10%, +15%);For 240Vac: The upper limit is 15% (optional +10%);The lower limit is -45% (optional -10%, -20%, -30%).
	Generator Connection	support
	output wiring	Three-phase five-wire system
output	Rated output voltage	380/400/415Vac
	Output power factor	0.9
	voltage regulation	± 1%
	Frequency	Mains mode: ± 1%/+2%/+4%/+5%/+10% adjustable; Battery mode: (50/60 ± 0.1%)Hz
	Peak current ratio	3:1
	Output voltage harmonic (THDV)	<2% (100% linear load); <4% (100% non-linear load)
	Overall efficiency	95.5%
	Overload capacity	At 110% load, switch to bypass after 60 minutes; at 125% load, switch to bypass after 10 minutes; at 150% load, switch to bypass after 1 minute.
battery	Battery Voltage	±180V/192V/±204V/±216V/±228V/±240V/±252V/±264V/±276V/±288V/+300Vdc (30-50 sections optional)
Transfer Time		Switching from mains mode to bypass mode: 0ms (tracking); Switching from mains mode to battery mode: 0ms.
Environ ment	Operating temperature	0°C to 40°C
	Storage temperature	-25°C to 55°C
	Humidity range	0 to 95% (non-condensing)
	Operating altitude	Less than 1500 meters
	Noise (at a distance of 1 meter)	< 65dB	< 68dB		< 70dB
function	Alarm function	Multiple alarm functions for overload, mains abnormalities, UPS faults, battery under – voltage, etc.
	Protection function	Alarms for battery under – voltage, output over – and under – voltage, short – circuit, overload, over – temperature, fan failure, lightning protection
	Communication interface	CAN, RS485, FE, LBS, parallel operation card, SNMP adapter (optional), relay card (optional)
other	W × D × H (mm)	850x600x2000			850x1200x2000
	Net Weight (kg)	335	400	638	740	843
	Execution standards	YD/T 1095-2018
