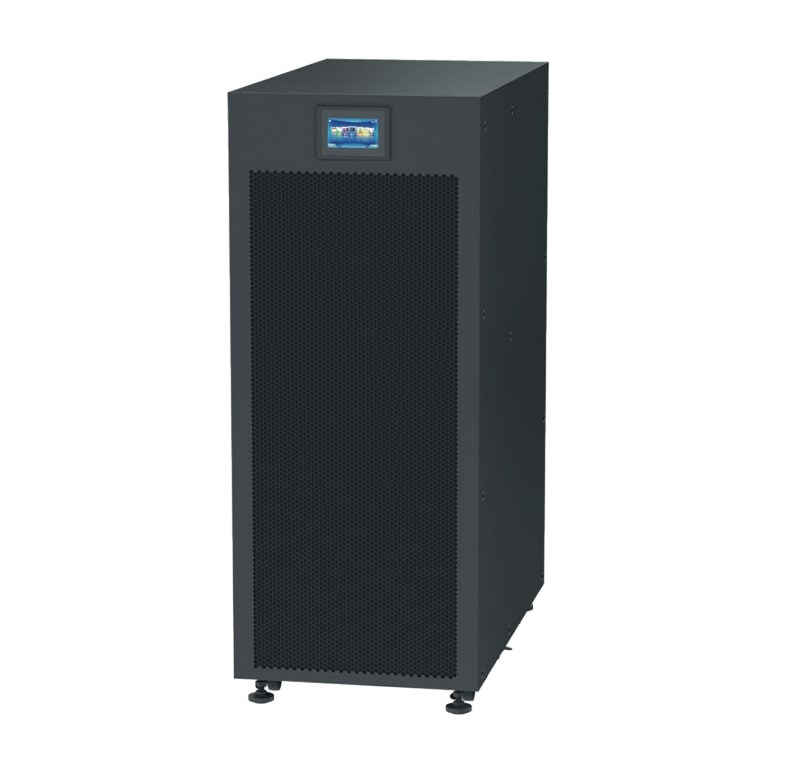

Pure sine wave UPS Tower UPS Rhimo RM33-100-180KVA-H

The high-frequency Tower UPS RM33-H series 100-180kVA fully digitally controlled online double-conversion three-phase input and three-phase output UPS has the advantages of high overall efficiency, high input power factor, low input current harmonics, and excellent output quality. It can eliminate various power grid problems and provide customers with stable and reliable power protection.

POWER RANGE

100-180kva

POWER PHASE

3/3 phase



Category:

APPLICATION

This product has a wide range of applications, offering safe,stable, reliable, and environmental  friendly power support
for critical loads in various industries such as telecommunications, finance, education, transportation, radio and television, medical care, and manufacturing.

Features

  • Ultra-wide input voltage range, enabling adaptation to harsh power grid environments.
  • Large input frequency range, allowing connection to fuel generators.
  • The overall efficiency of the unit is greater than or equal to 95.5%.
  • The input power factor is as high as 0.99, and the input harmonic current is less than 3%.
  • ExtremeRM strong load-bearing capacity, excellent load adaptability, and compatibility with generator operation.
  • Supports no-load aging tests.
  • Supports the parallel connection of 4 units and sharing of the battery pack.
  • Compatible with generators.
  • Equipped with a 4.3-inch color touch screen, making it easy to operate.
  • Has intelligent management functions and supports RS485, SNMP, dry contact, and CAN interfaces.

model : RM33- 100K-H 120K-H 160K-H 180K-H
capacity 100KVA 120KVA 160KVA 180KVA
input Input Wiring Three-phase Five-wire
Rated Input Voltage 380/400/415Vac
Input Voltage Range 138~485Vac
Input Frequency Range 40HZ-70HZ
Input Power Factor >0.99
Input Current Harmonic (THDI) <3% (100% linear load)
Bypass Voltage Range For 220Vac: The upper limit is 25% (optional +10%, +15%, +20%);For 230Vac: The upper limit is 20% (optional +10%, +15%);For 240Vac: The upper limit is 15% (optional +10%);The lower limit is -45% (optional -10%, -20%, -30%).
Generator Connection support
output wiring Three-phase five-wire system
output Rated output voltage 380/400/415Vac
Output power factor 0.9
voltage regulation ±1%
Frequency Mains mode: ±1%/±2%/±4%/±5%/±10% adjustable; Battery mode: (50/60 ± 0.1%)Hz
Peak current ratio 3:1
Output voltage harmonic (THDV) <2% (100% linear load);<4% (100% non-linear load)
Overall efficiency 95.5%
Overload capacity At 110% load, switch to bypass after 60 minutes; at 125% load, switch to bypass after 10 minutes; at 150% load, switch to bypass after 1 minute.
battery Battery Voltage ±180V/192V/±204V/±216V/±228V/±240V/±252V/±264V/±276V/±288V/±300Vdc (30-50 sections optional)
Charge Current Maximum 30A Maximum 45A
Transfer Time Switching from mains mode to bypass mode: 0ms (tracking); Switching from mains mode to battery mode: 0ms
Environ ment Operating temperature 0°C to 40°C
Storage temperature -25°C to 55°C
Humidity range 0 to 95% (non-condensing)
Operating altitude Less than 1500 meters
Noise (at a distance of 1 meter) Less than 60 decibels Less than 65 decibels
function Alarm function Multiple alarm functions for overload, mains abnormalities, UPS faults, battery under – voltage, etc.
Protection function Alarms for battery under – voltage, output over – and under – voltage, short – circuit, overload, over – temperature, fan failure; lightning protection
Communication interface CAN, RS485, FE, LBS, parallel operation card, SNMP adapter (optional), relay card (optional)
other W × D × H (mm) 885×440×1200
Net Weight (kg) 160 162 196 198
Execution standards YD/T 1095-2018
