High-Frequency Rack-Mount RM11-UNR Series UPS (1-3KVA) is the latest general-purpose UPS designed and manufactured by Rhimo. It supports both tower and rack-mount installation, featuring an online double-conversion design, which provides a superior power environment for user loads compared to line-interactive or standby UPS models.
This product is widely suitable for IT equipment in government, finance, education, and small-to-medium
enterprises.

POWER RANGE

1-3kva

POWER PHASE

1/1 phase



Category:

APPLICATION

Network and intelligent cabinet room solutions for enterprises, shopping malls, government, finance, healthcare, education, and other fields.

FEATURES

  • Online double-conversion design, compatible with tower/rack mounting
  • LCD display for easy operation and maintenance
  • Wide input voltage range (110Vac to 300Vac), adaptable to poor grid conditions
  • Input power factor >0.99, green power design
  • Output power factor of 1, strong load capacity
  • Utility mode efficiency up to 94%, energy-saving
  • Long-life model supports charging current up to 12A, multi-stage intelligent charging management
  • Comprehensive protection mechanisms: under-voltage, over-voltage, short-circuit, over-temperature, etc.
  • Standard RS232 interface, optional SNMP card and USB port

PRODUCT FEATURES

Flexible Installation

• Compatible with both tower and rack-mount installations, easily adapting to various deployment environments.

Pure Sine Wave Output

• Featuring online double-conversion architecture and digital control technology, it delivers pure sine wave output capable of supporting various load types, ensuring optimal power protection for user equipment.

Zero Transfer Time

• Zero transfer time between utility and battery modes during power outages/restoration ensures uninterrupted load operation.

Green Power Design

• Equipped with input power factor correction (PFC), achieving a high power factor of ≥ 0.99 to minimize grid pollution and align with green power design principles.

Auto Restart Function

• Automatic restart when utility power resumes after outage, enabling unmanned operation without manual intervention.

Intelligent Battery Management

• Multi-stage intelligent battery charging technology delivers high-power charging performance, supporting extended battery bank configurations.

Generator Compatible

• Wide input voltage/frequency range enables seamless compatibility with generator systems, delivering clean/stable power to critical loads.

Model RM11-UNR 1K-UNR 1KL-UNR 2K-UNR 2KL-UNR 3K-UNR 3KL-UNR
Capacity/Power 1kVA/1kW 2kVA/2kW 3kVA/3kW
input Input Wiring
Rated Input Voltage 208/220/230/240VAC
Voltage Range 110~300VAC
Frequency Range 44~56Hz or 54Hz~66Hz,Default
Input Power Factor ≥0.99
Input Total Harmonic Distortion ≤4% (Linear Load) ≤5% (Non-linear Load,PF = 0.8)
Output Wiring L+N+PE
output Output Voltage 208/220/230/240VAC
Voltage Regulation ±1%
Output Frequency Online mode: Follow the mains frequency. Battery mode: 50/60Hz±0.1%
Output Harmonic Distortion ≤3%(Linear Load) ≤5%(Non-linear Load)
Output Power Factor 1
Transfer Time Mains – battery: 0 ms. Inverter – bypass: 4 ms.
Overload Capacity Mains mode:
30min@102%~110%Load;10min@110%~130%Load;30s@130%~150%Load;200ms@>150%Load
Battery mode:
1min@102%~110%Load;10s@110%~130%Load;3s@130%~150%Load;200ms@>150% Load
Efficiency (mains supply mode) 94.5% 95.5% 95.5
battery Battery Voltage Built-in 2x12V 7AH/9 AH battery 36Vdc Built-in 4x12V 7 AH/9AH battery 72Vdc
Charge Current 1A 1-12A(max) 1A 1-12A(max)
display interface Liquid crystal display interface, which supports operating mode/load/electric quantity/input/output, etc.
communication interface It is standardly equipped with an RS232 communication interface. SNMP smart cards and USB interfaces are optional.
Environ ment Operating Temperature 0~40°C
Operating Humidity No condensation at 20% – 95% (humidity level)
Altitude It should not exceed 1000m. Derating is required when it is above 1000m. The maximum altitude is 4000m. Refer to IEC62040.

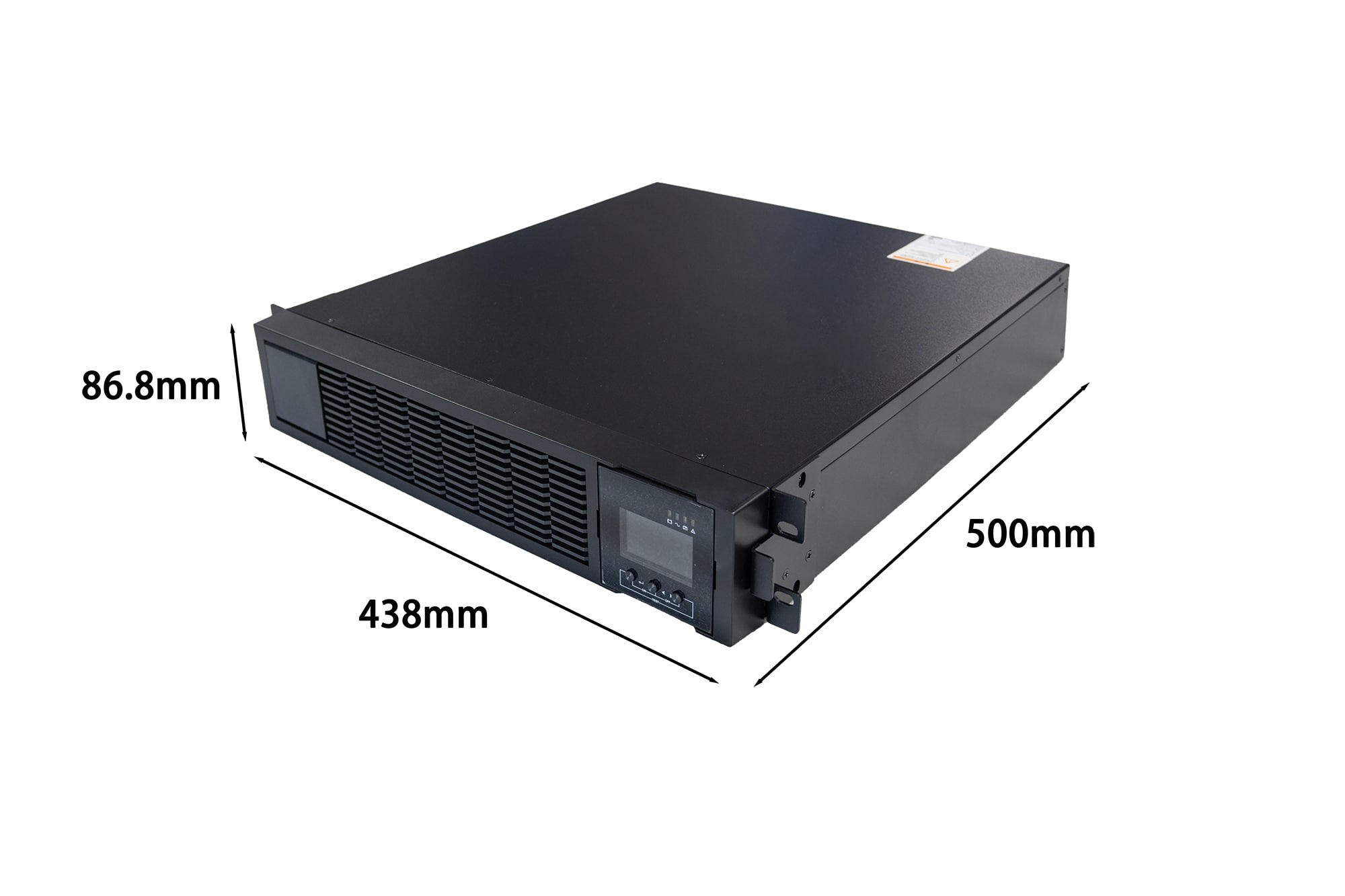

Size W × D × H (mm) 438×315×86.8 438×400×86.8 438×500×86.8
Net Weight (kg) 9.8/10.8 4.8 16.4/18.4 8 21/24 8.2
